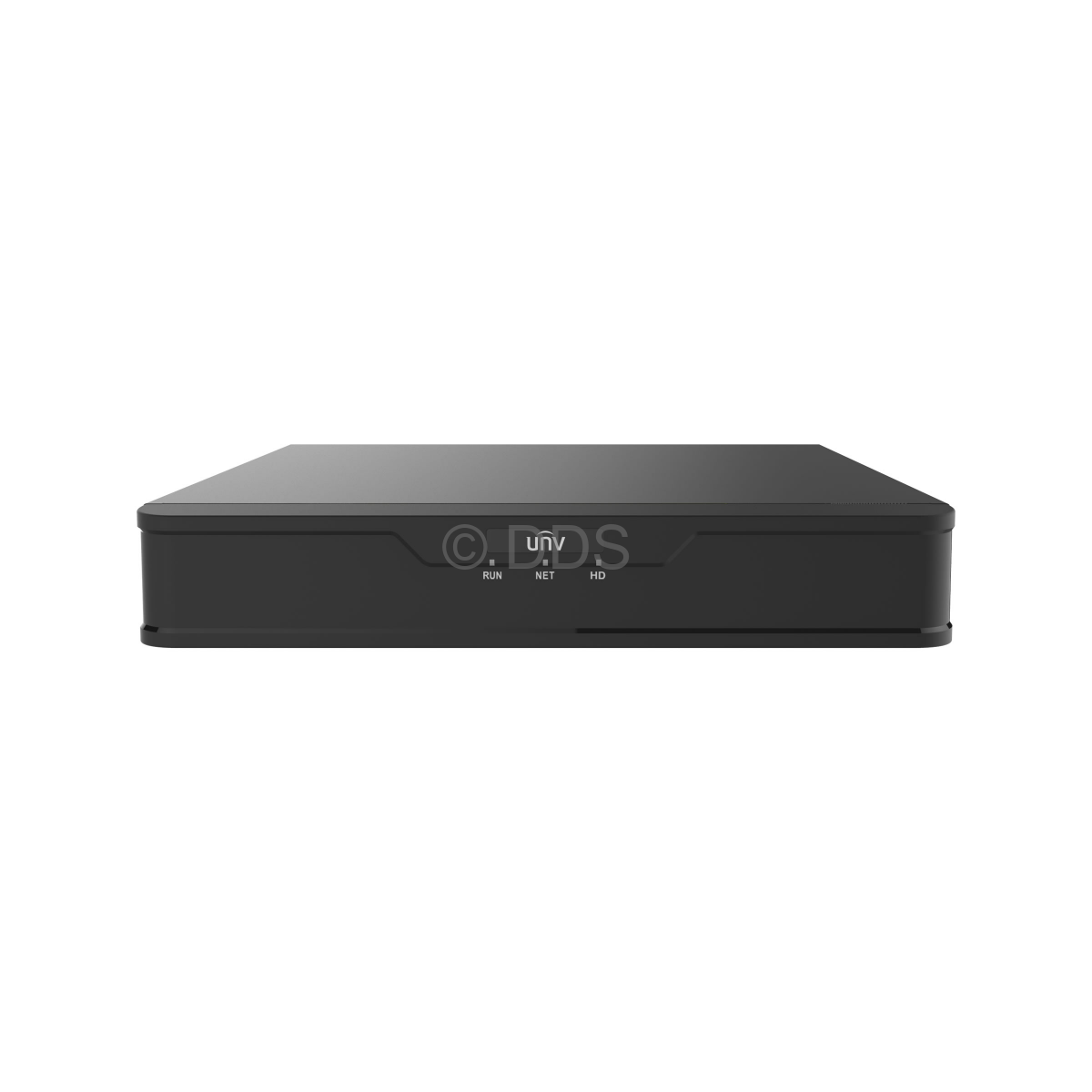

UNV IP NVR (8 Channel, 8 POE, Smart AI)

Call us for a price

NVR501-08B-P8

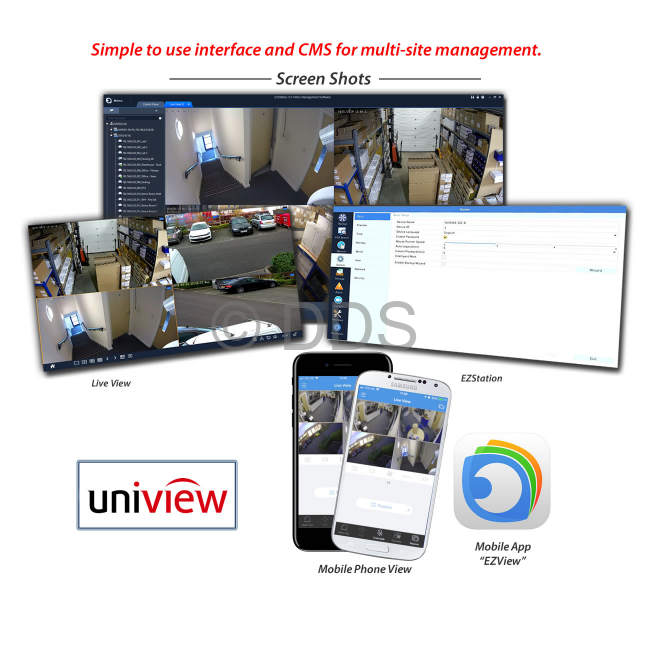

Part of the UNV professional range, this NVR (Network Video Recorder) has HD recording and playback of all channels. It includes a user friendly mouse driven interface with full remote network and mobile phone access. The NVR can auto detect ONVIF compatible IP cameras; it can support up to 16MP IP cameras and includes 8 POE ports to power POE cameras locally.

- 8 Channel Video & Audio
- Plug & Play 8 Port POE
- Supports up to 16MP IP Cameras
- Bandwidth IN: 80Mbps, OUT: 64Mbps
- HDMI & VGA Output
- VCA with Compatible Cameras (see Special Features)
- ONVIF Compliance (Profiles S, G, T)
- Supports H.264, H.265 or Ultra265
- Fanless design
- ANR Technology to Enhance Storage (see Special Features)
- Mac Compatible
- Compatible with Sentinel and Immix Remote Monitoring

*NVR purchased without HDD comes with a Limited Warranty. Also, Uniview compatible HDD must be used



Click here to select Hard Drive options

Video/Audio Input

Video Input:
8ch H.264/H.265/Ultra265
Incoming Bandwidth:
80Mbps
Outgoing Bandwidth:
64Mbps
Supported Technologies:
IP

Video/Audio Output

Live View/ Playback/ Recording Resolution:
16MP/12MP/8MP/5MP/4MP/3MP/1080P/720P/D1/2CIF/CIF
Frame Rate:
16MP, 12MP, 8MP, 5MP, 4MP, 3MP, 1080P@30fps
Playback Capacity:
8ch 1080P/8ch 4MP/6ch 5MP/4ch 8MP/2ch 12MP/2ch 16MP
HDMI Output:
3840x2160, 1920x1080, 1280x720, 1024x768
VGA Output:
1920x1080, 1280x720, 1024x768

Hard Disk

Drive quantity:
Up to 1 SATA drive
Drive capacity:
Up to 8TB

Network

Network Interface:
1 RJ45 10M/100M
Protocol:
RTP/RTCP, TCP/UDP ,HTTP, DHCP, DNS, NTP, P2P, UPnP, PPPoE
POE Interface:
8Ch 100Mbps, IEEE802.3af/IEEE802.3at
POE Max Power:
30W for single port/75W for all ports

Storage and Backup

Recording Mode:
Manual, Continuous, Schedule, Motion, Sensor, Pre/Post
Playback:
Search by Time, Calendar, Events
Backup Devices:
Via USB Memory Stick, HDD or over the network
Live View:
1, 4, 6, or 8 screens, Digital Zoom

General

Power Supply:
DC52V
Power Consumption:
Max 10W (without HDD, USB)
Operating Temperature:
-10°C ~ 55°C
Operating Humidity:
0% - 90% RH
Product Dimensions:
260mm(W) x 222mm(D) x 44mm(H)

Application

Supported OS:
Windows 7+, MacOS X 10.11+
Remote Software:
Internet Explorer 10+, EZStation VMS
Supported Devices:
iOS, Android
Mobile App:
EZView
Notifications:
Email or Push

Interface

Video Outputs:
HDMI (x1), VGA (x1)
USB:
USB 2.0 (x1), USB 3.0 (x1)
Audio I/O:
Microphone in (x1), Audio line out (x1)
PTZ Control:
Onvif
Control:
Mouse control

This recorder has the following special features:

AI (Artificial Intelligence)
AI allows the NVR to work out if the movement detected was caused by a human, vehicle, or nature. This requires an AI compatible camera (order code ending in -I0 or -I1).


ANR (Automatic Network Replenishment)
ANR is a feature which allows a camera to record to an onboard MicroSD card, if it loses connection with the NVR. Once the connection has been re-established, the footage is transferred to the NVR. This feature requires ANR support from the camera and NVR.



VCA (Video Content Analysis)

VCA is the ability to automatically analyse video to detect temporal and spatial events. The feature requires VCA support from the camera and NVR. This NVR has the capability to do the following:

  • Audio Detection - Detect a sudden increase or decrease in sound
  • Crowd Density Monitoring - Detect and monitor the number of people in a pre-defined virtual region, with different warning levels
  • Enter Area - Entering into a pre-defined virtual region
  • Face Detection - Detect and recognise human faces
  • Intrusion Detection - Entering and loitering in a pre-defined virtual region
  • Leave Area - Leaving a pre-defined virtual region
  • Line Crossing - Detect when a pre-defined virtual line has been crossed
  • Motion Detection - Movement within a pre-defined virtual region
  • Object Left Behind - Detect when an object has been left inside a region, which wasn't there before
  • Object Removed - Detect when an object has been removed from a region, which was there before
  • Scene Change - Detect when the scene changed
  • Tamper Identification - Detect when the camera has been physically tampered with
  • Ultra Motion Detection - Detects if movement was caused by a human, motor vehicle or non-motor vehicle
