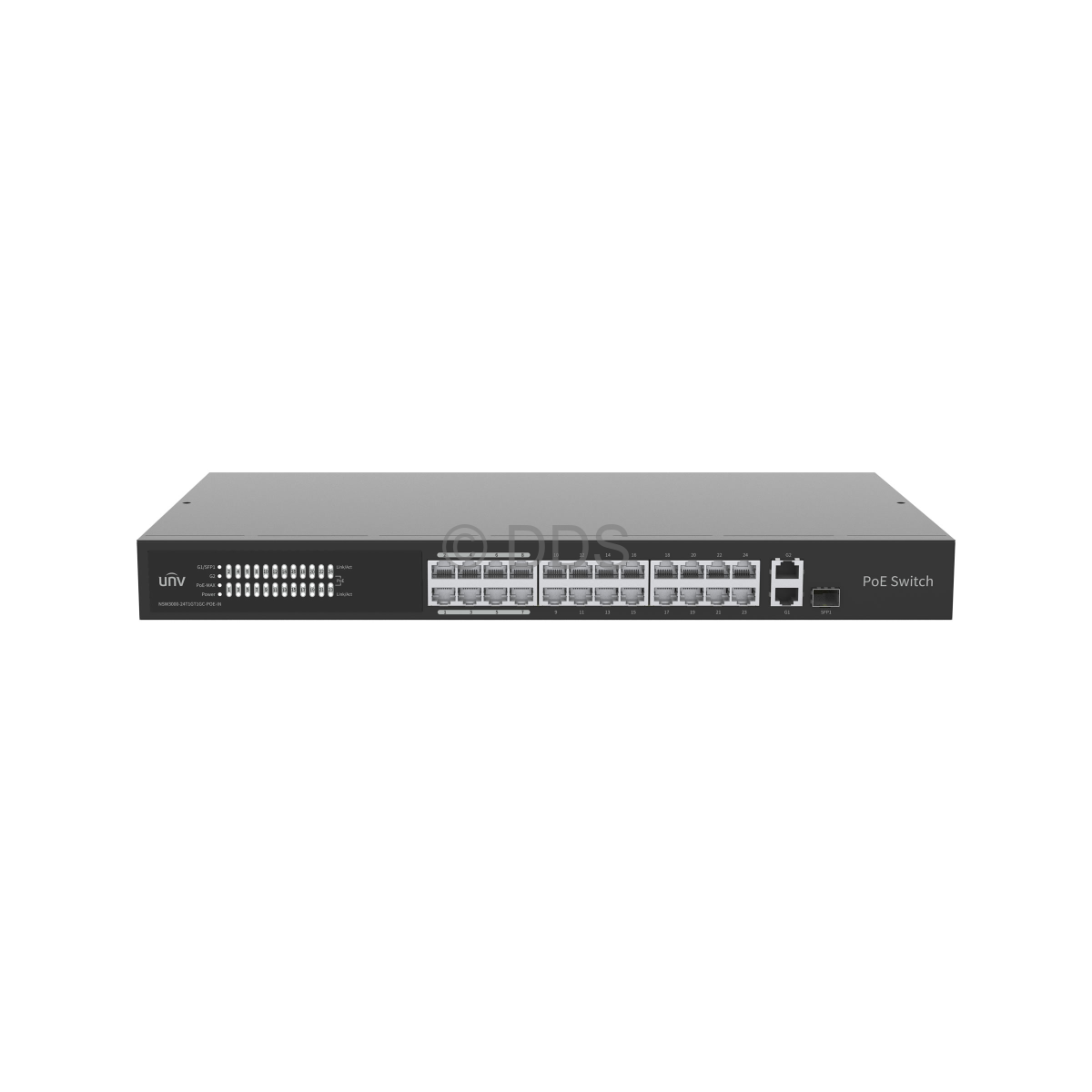

Uniview Managed POE Ethernet Switch (24 Ports, 2 Uplinks)
Save
100%
100%
- Supports web login and configuration, or by cloud using the UNV-Link PRO app
- 24x 100Mbps POE Ports + 2x 1000Mbps (Gigabit) Combo Uplink Ports
- Total output power 370 watts
- POE+ (max. 30W per port)
- Can supply POE up to 250 meters (in surveillance mode)
- Switch capacity: 8.8Gbps, Forwarding Performance: 6.55Mbpps, MAC Address Table: 16K
- 48vDC POE Power
| Technical Specifications | |
| Hardware | |
| Ports | 24 x 100Mbps POE ports + 1 x 1000Mbps (1Gbps) Combo Uplinks |
| Standards | IEEE802.3, IEEE802.3u, IEEE802.3az, IEEE802.3x, IEEE802.3af, IEEE802.3at, IEEE802.3z, IEEE802.3ab |
| Switching Capacity | 8.8Gbps |
| Forwarding Performance | 6.55Mpps |
| Packet Buffer | 4Mbit |
| MAC Address Table | 16K |
| POE | 802.3at/af |
| Max. PoE Power | Max capacity: 370W Max capacity for single port: 30W |
| Cooling Fans | 1 |
| Working Temperature | 0°C - 45°C |
| Indicator | POWER: Off: No AC input Steady on: AC input is normal PoE: Off: No PoE power supply PoE on: PoE power supply is normal PoE-MAX on: PoE power consumption is more than 85% LINK/ACT: |
| Priority Ports | Ports 1-8 |
| Power Supply | AC: 100-240V, 50/60Hz |
| Weight | 2.9kg |
| Dimensions (W x D x H) | 440mm x 244.8mm x 44mm |
| Software | |
| Ethernet | Supports full duplex, half duplex, and auto-negotiation working modes Supports port auto-negotiation rate Supports port priority flow control Supports link aggregation group (consisting of two uplink ports) Supports port flow statistics Supports enabling/disabling ports |
| VLAN | Supports both access and trunk modes; allows up to 32 VLANs with IDs from 1 to 4095 |
| MAC | Support up to 16K Supports clearing the dynamic MAC address |
| POE | Allows to view PoE status and power. Allows to enable/disable PoE power supply. |
| Loop Detection | Supported |
| QoS | Supports port rate limitation Supports broadcast storm control |
| System | Allows viewing the device name, device model, serial number, current version, IP address, MAC address, DNS, operation time, etc Allows editing and managing the IP address and device name Supports single-user management, user authentication, and password modification Supports manual time configuration and NTP Allows to view other switches' information on the same network, up to 32 switches Allows to view the connected video devices information, up to 64 devices |
| Security | Supports port isolation (only for the downlink ports) Supports locking login IP address, up to 64 addresses can be locked |
| Maintenance | Supports N:1 port mirroring Supports unified software configuration, management, and search Supports discovering the connected video devices and generating a network topology on the software Supports device upgrade, factory settings restoration, configuration import, configuration export, logs export, and device restart on the software |
