UNV Mini IP Camera (2MP, Wifi)
Save
100%
100%
Part of the UNV EasyBasic range, this mini wifi bullet camera boasting an impressive 2 megapixel HD recording resolution and a 2.8mm fixed-focal lens. Supporting up to Ultra265 compression and 30m of IR range.
- Resolution 2MP (1920 x 1080)
- Fixed 2.8mm Lens, Viewing Angle 101.1°(H)
- Smart IR, Up To 30m IR Range
- Anti-Reflection Design To Improve IR Effectiveness
- Day/Night, IR Cut Filter, 3D DNR
- WDR, OSD, Triple Streams
- Privacy Mask, Motion Mask, ROI
- MicroSD Card Slot (see Special Features)
- Supports H.264, H.265 or Ultra265
- ONVIF Compliance (Profile G, S, T)
- Supports 802.11b/g/n
- Temperature Range -30°C to 60°C
- Wide Voltage Range (±25%)
- Metal Housing, IP67 Rated
- 4kV surge protection
Camera
Image Sensor:
Aptina CMOS (1/2.9")
Resolution:
2MP
Effective Pixels (H x V):
1920 x 1080
TV System:
PAL / NTSC
Shutter Speed:
Auto/Manual, 1~1/100000s
Signal-to-noise Ratio:
>52dB
Iris:
Electronic
Back Light Compensation:
Yes
Wide Dynamic Range:
dWDR
Digital Noise Reduction:
2D/3D
Gain Control:
Auto
Sync Mode:
Internal
White Balance:
Auto/Manual
Lens:
Fixed 2.8mm Lens
Field of View:
101.1°
Scanning:
Progressive Scan
Onboard Recording:
Yes, to MicroSD card up to 128GB
DORI
Detect:
64.3m
Observe:
25.7m
Recognise:
12.9m
Identify:
6.4m
Day/Night
Day & Night:
IR Cut Filter (Smart IR)
Minimum Illumination:
Colour 0.01Lux, 0Lux with IR on
IR Range:
25-30m
IR Control:
CDS Auto
Network
Ethernet:
RJ45 10/100
Wi-Fi:
IEEE802.11b/g/n
Wi-Fi Range:
Up to 130m (The performance varies based on actual environment)
Supported Protocols:
IPv4,IGMP,ICMP,ARP,TCP,UDP,DHCP, RTP,RTSP,RTCP,DNS,DDNS,NTP,FTP,UPnP,HTTP,HTTPS,SMTP,SSL
ONVIF:
Supports ONVIF (Profile S, Profile G, Profile T)
POE:
N/A
Main Stream:
1920x1080@30fps
Sub Stream:
1280x720@30fps
General
Power:
DC 12V±25%
Housing:
Metal / Plastic
Power Consumption:
Max 4W
Operating Temperature:
-30°C ~ +60°C
Operating Humidity:
0% - 95% RH
Ingress Protection:
IP67
Approvals:
CE / FCC
Weight:
250g
Interface
Built-in Microphone:
Yes

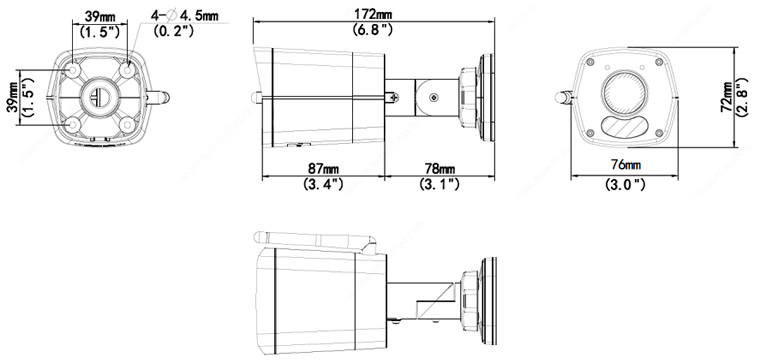

All dimensions are in millimetres (mm)
Different ways of mounting this camera:
This camera has the following special features:
ANR (Automatic Network Replenishment)
ANR is a feature which allows a camera to record to an onboard MicroSD card, if it loses connection with the NVR. Once the connection has been re-established, the footage is transferred to the NVR. This feature requires ANR support from the camera and NVR.
