MultiView Double Dome Camera (4MP, Dual Lens, IK10)

Call us for a price

IPC3224SS-ADF28K-I1

Part of the UNV MultiView range, this dual dome IP camera boasting an impressive 4 megapixel HD recording resolution and a 2.8mm fixed-focal lens. Each dome operates independently, showing it's own 4MP image, whilst sharing a single ethernet cable and IP address. This camera has the LightHunter chipset, allowing for full colour at night with sufficient ambient lighting. Supporting Ultra265 compression and 30m of IR range.

- Vandal Resistant (IK10 Rating)
- Resolution 4MP (2688 x 1520), POE
- Fixed 2.8mm Lens, Viewing Angle 97.7°(H)
- Smart IR, Up To 30m IR Range
- Day/Night, IR Cut Filter, 3D DNR
- WDR, OSD, Triple Streams
- Privacy Mask, Motion Mask, ROI
- Supports H.264, H.265 or Ultra265
- ONVIF Compliance (Profile G, S, T)
- Temperature Range -30°C to 60°C
- Wide Voltage Range (±25%)
- Metal Housing, IK10 and IP67 Rated
- 4kV Surge Protection

Camera

Image Sensor:
LightHunter CMOS (1/3")
Resolution:
4MP
Effective Pixels (H x V):
2688 x 1520
TV System:
PAL / NTSC
Shutter Speed:
Auto/Manual, 1~1/100000s
Signal-to-noise Ratio:
>52dB
Iris:
Electronic
Back Light Compensation:
Via OSD Menu
Wide Dynamic Range:
130dB
Digital Noise Reduction:
2D/3D
Gain Control:
Auto
Sync Mode:
Internal
White Balance:
Auto/Manual
Lens:
Fixed 2.8mm Lens
Field of View:
97.7°
Scanning:
Progressive Scan
Onboard Recording:
Yes, to MicroSD card up to 256GB

DORI

Detect:
63.0m
Observe:
25.2m
Recognise:
12.6m
Identify:
6.3m

Day/Night

Day & Night:
IR Cut Filter (Smart IR)
Minimum Illumination:
Colour 0.002Lux, 0Lux with IR on
IR Range:
25-30m
IR Control:
CDS Auto

Network

Ethernet:
RJ45 10/100
Supported Protocols:
IPv4,IGMP,ICMP,ARP,TCP,UDP,DHCP, RTP,RTSP,RTCP,DNS,DDNS,NTP,FTP,UPnP,HTTP,HTTPS,SMTP,SSL
ONVIF:
Supports ONVIF (Profile G, Profile S, Profile T)
POE:
Yes
Main Stream:
2688x1520@25fps
Sub Stream:
720x576@30fps

General

Power:
DC 12V±25% / PoE (IEEE 802.3af)
Housing:
Metal
Power Consumption:
Max 9.1W
Operating Temperature:
-30°C ~ +60°C
Operating Humidity:
≤95% RH
Ingress Protection:
IP67
Approvals:
CE / FCC
Weight:
620g

Interface

Built-in Microphone:
Yes (2x)
Audio I/O:
Microphone input (x1), Audio output (x1)
Alarm I/O:
Alarm input (x1), Alarm output (x1)

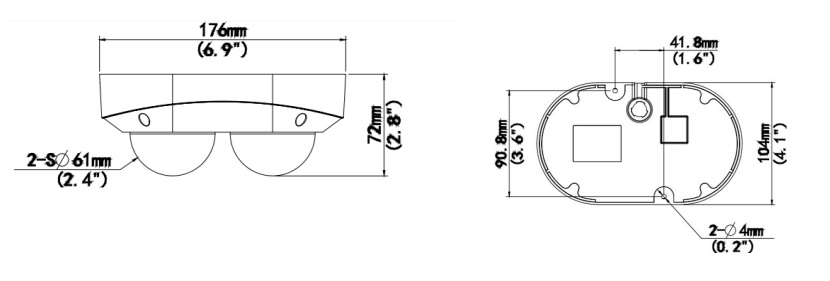

All dimensions are in millimetres (mm)

Dimensions of IPC3224SS-ADF28K-I1

TR-JB08

- Junction box for IPC322xSS Double Dome Series
- Φ176mm x 107mm x 48mm
- Weight: 240g

Call us for a price £14.00 You save: £14.00
TR-CM24-IN

Indoor pendant installation for turret, dome and fisheye cameras
- 110mm x 223.5mm

Call us for a price £8.00 You save: £8.00
TR-SE24-IN

Extension for the TR-CM24-IN pendant mount
- 220mm x 32mm

Call us for a price £8.00 You save: £8.00
TR-SE24-A-IN

Extension for the TR-CM24-IN pendant mount
- 520mm x 32mm

Call us for a price £10.00 You save: £10.00
TR-A01-IN

- Plastic waterproof joint
- Ideal for internal and external use
- Ø37mm x 46mm

Call us for a price £2.50 You save: £2.50

This camera has the following special features:

ANR (Automatic Network Replenishment)

ANR is a feature which allows a camera to record to an onboard MicroSD card, if it loses connection with the NVR. Once the connection has been re-established, the footage is transferred to the NVR. This feature requires ANR support from the camera and NVR.



LightHunter

LightHunter is the technology which allows for outstanding image at super low illumination during the night for both static and moving scenes. UNV LightHunter IPCs enhances the brightness of the images in a low-illumination environment by increasing the sensor target surface, sensor photosensitivity, lens aperture and transmittance as well as optimizing the hardware structure. UNV new-generation algorithm (U-ISP) has many advantages, such as reducing blur and noise and increasing sharpness. All of these advantages improve the definition and brightness of images. This also means that the camera can display full colour at night.



IK10 Rating

An IK rating refers to how much mechanical impact a product can resist and is defined in IEC 62262. An IK10 rating means the product is protected against 20 joules impact; this is equivalent to an impact from a 5 kg mass dropped from 400 mm above the impacted surface.



VCA (Video Content Analysis)

VCA is the ability to automatically analyse video to detect temporal and spatial events. This camera has the capability to do the following:

  • Audio Detection - Detect a sudden increase or decrease in sound
  • Crowd Density Monitoring - Detect the number of people in a pre-defined virtual region (only Channel 1)
  • Enter Area - Entering into a pre-defined virtual region
  • Intrusion Detection - Entering and loitering in a pre-defined virtual region
  • Leave Area - Leaving a pre-defined virtual region
  • Line Crossing - Detect when a pre-defined virtual line has been crossed
  • Motion Detection - Movement within a pre-defined virtual region
  • People Flow Counting - Count the number of people passing over a virtual line, in a specified direction (only Channel 1)
  • Tamper Identification - Detect when the camera has been physically tampered with
