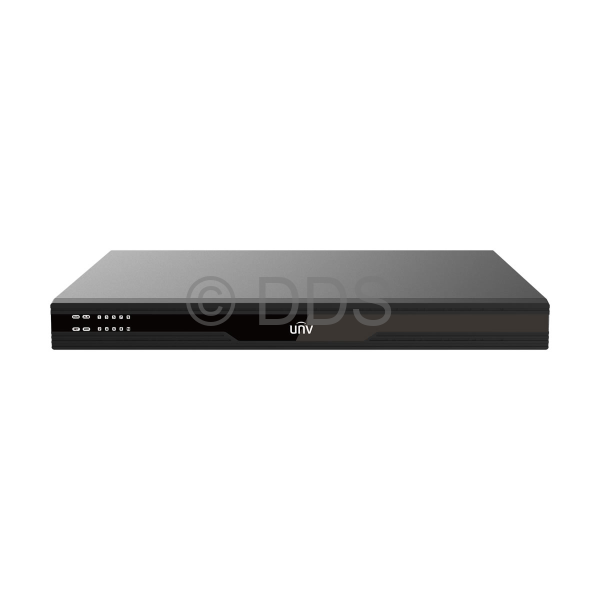

Uniview 10ch Network Video Decoder

Home/Uniview IP/Uniview IP Recorders (NVR)/Video Decoders/Uniview 10ch Network Video Decoder

1 of 3

Save
100%

Call us for a price

Order Code: DC5510-E-V2

Description

Uniview network video decoder, with 2 HDMI inputs and 10 HDMI outputs. Decodes up to 40 channels at 2MP (1080P) or 10 channels at 8MP (4K).

- 10x HDMI outputs
- Up to 3840x2160@60Hz
- Decoding up to 8MP resolution

Technical Specifications
Output channel	10
HDMI output	Up to 3840×2160@60Hz
Input channel	2
HDMI input	Up to 1920×1080@60Hz
Decoding Capability	10x8MP@30 / 40x1080P@30 / 90x720P@30
Display split	1/2/3/4/6/7/9/16
Alarm Input	6 (reserved)
Alarm Output	3 (reserved)
Audio Input	2-ch (reserved)
Audio Output	1-ch (3.5mm)
USB Interface	1 x USB 3.0
Serial Interface	1 x RS-232, 1 x RS485
Network Interface	1 x RJ-45 (10M/100M/1000M Ethernet)
Dimensions	440mm(W) x 339mm(D) x 44mm(H)
Weight	3.37kg
Working Temperature	-10 ~ +55°C
Working Humidity	10% ~ 90%(No-condensing)
Power Supply	100~240V AC
Consumption	31W
