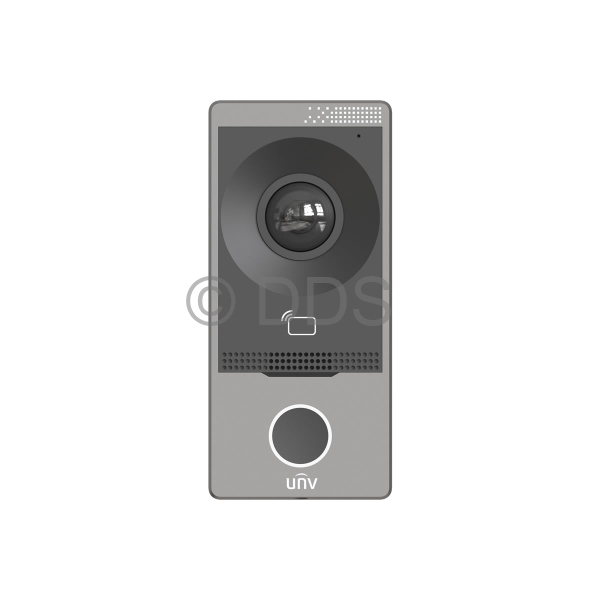

Uniview Outdoor Station
Save
100%
100%
The Uniview outdoor station has a 2MP camera, giving a clear full HD view. It has a 3m infrared range, built-in microphone and speaker for 2-way audio; as well as an IC card reader which supports 13.56MHz credentials, and 2 door lock interfaces.
- Resolution: 2MP (1920 x 1080), POE
- Smart IR, Up To 3m IR Range
- Built-in Microphone
- Built-in Speaker
- Support Wi-Fi
| Technical Specifications | |
| Camera Resolution | 1920 x 1080 |
| Illumination | Infrared (up to 3m) |
| WDR | Supported |
| Field of View | Horizontal: 124.3° Vertical: 67.5° Diagonal: 147.2° |
| Audio quality | Noise reduction, echo cancellation, auto gain control |
| Protocol | Uniview private protocol |
| Audio compression | PCM, G711, MP3 (128kbps) |
| Ingress protection | IP65 (Apply waterproof glue to the gap between the device and the wall. See the corresponding quick guide for details) IK08 |
| Interface | Power supply (x1), network interface (x1), RS485 (x1), door lock interface (x2), IO input (x4) |
| Card capacity | 10,000 (supports 13.56MHz) |
| Power | DC12V ±25% or PoE Consumption: <10W |
| Network | Network Port: 10/100mbps Wi-Fi: 802.11 b/g/n |

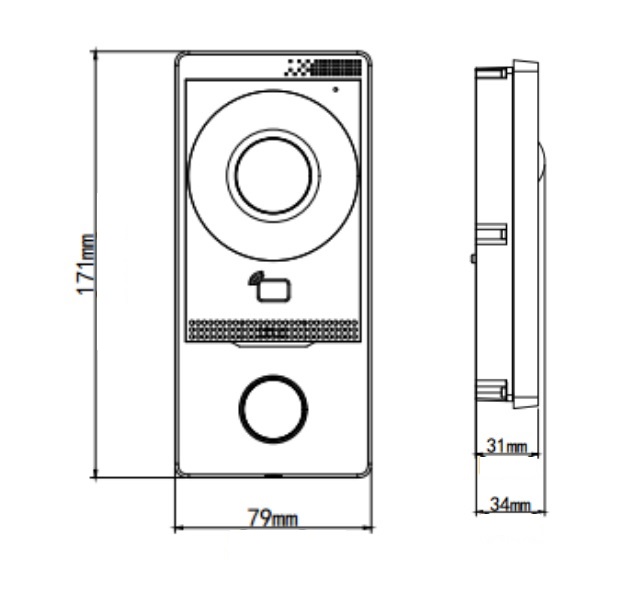

| Dimensions | 79mm x 171mm x 34mm |
All dimensions are in millimetres (mm)
