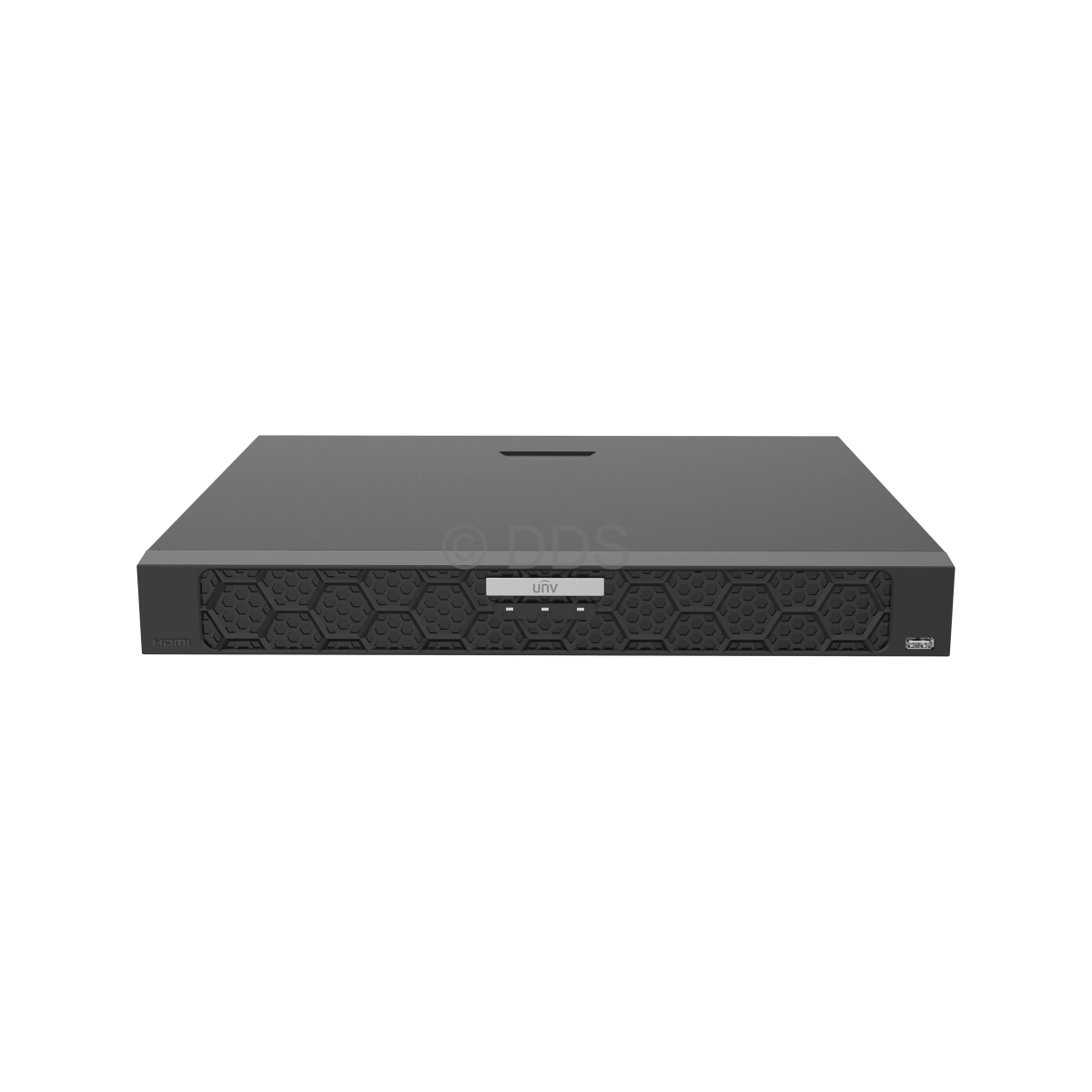

UNV IP NVR (8 Channel, 8 POE, PRO)

Call us for a price

NVR502-08B-P8-IQ

Part of the UNV professional range, this NVR (Network Video Recorder) has HD recording and playback of all channels. It includes a user-friendly mouse-driven interface with full remote network and mobile phone access. The NVR can auto-detect ONVIF-compatible IP cameras; it can support up to 16MP IP cameras and includes 8 POE ports to power POE cameras locally.

- 8 Channel Video & Audio
- Plug & Play 8 Port POE
- Supports up to 16MP IP Cameras
- Bandwidth IN: 320Mbps (160Mbps with Smart On), OUT: 160Mbps
- License Plate Recognition (see Special Features)
- AI with Compatible Cameras (see Special Features)
- HDMI & VGA Output
- ONVIF Compliance (Profiles S, G, T)
- Supports H.264, H.265 or Ultra265
- ANR Technology to Enhance Storage (see Special Features)
- Mac Compatible
- Compatible with Sentinel and Immix Remote Monitoring

*NVR purchased without HDD comes with a Limited Warranty. Also, Uniview compatible HDD must be used


Click here to select Hard Drive options

Video/Audio Input

Video Input:
8ch H.264/H.265/Ultra265
Incoming Bandwidth:
Smart Off: 320Mbps | Smart On: 160Mbps
Outgoing Bandwidth:
160Mbps
Supported Technologies:
IP

Video/Audio Output

Live View/ Playback/ Recording Resolution:
16MP/12MP/8MP/5MP/4MP/3MP/1080P/720P/D1/2CIF/CIF
Frame Rate:
16MP, 12MP, 8MP, 5MP, 4MP, 3MP, 1080P@30fps
Playback Capacity:
16ch 1080P/8ch 4MP/4ch 8MP/2ch 12MP/2ch 16MP
HDMI Output:
3840x2160, 1920x1080, 1280x720, 1024x768
VGA Output:
1920x1080, 1280x720, 1024x768

Hard Disk

Drive quantity:
Up to 2 SATA drives
Drive capacity:
Up to 12TB each

Network

Network Interface:
1 RJ45 10M/100M/1000M
Protocol:
RTP/RTCP, TCP/UDP ,HTTP, DHCP, DNS, NTP, P2P, UPnP, PPPoE
POE Interface:
8Ch 100Mbps, IEEE802.3af/IEEE802.3at
POE Max Power:
30W for single port/130W for all ports

Storage and Backup

Recording Mode:
Manual, Continuous, Schedule, Motion, Sensor, Pre/Post
Playback:
Search by Time, Calendar, Events
Backup Devices:
Via USB Memory Stick, HDD or over the network
Live View:
1, 4, 6, 8 or 9 screens, Digital Zoom

General

Power Supply:
100~240V AC
Power Consumption:
Max ≤12W (without HDD, USB)
Operating Temperature:
-10°C ~ 55°C
Operating Humidity:
0% - 90% RH
Product Dimensions:
380mm(W) x 322mm(D) x 53mm(H)

Application

Supported OS:
Windows 7+, MacOS X 10.11+

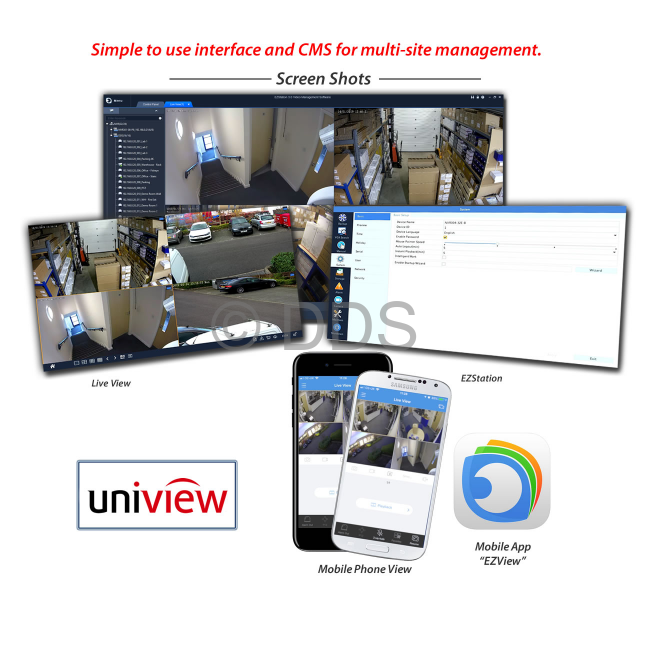

Remote Software:
Chrome, Edge, Firefox, Internet Explorer 11, EZStation VMS
Supported Devices:
iOS, Android
Mobile App:
EZView
Notifications:
Email or Push

Interface

Video Outputs:
HDMI (x1), VGA (x1)
USB:
USB 3.0 (x1), USB 2.0 (x1)
Audio I/O:
Microphone in (x1), Audio line out (x1)
Alarm I/O:
Alarm input (x8), Alarm output (x2)
PTZ Control:
Onvif
Control:
Mouse control

Datasheet (NVR502-B-P-IQ-Series-Datasheet.pdf, 394 Kb) [Download]

This recorder has the following special features:

AI (Artificial Intelligence)

AI allows the NVR to work out if the movement detected was caused by a human, vehicle, or nature. This requires an AI compatible camera.


ANR (Automatic Network Replenishment)

ANR is a feature which allows a camera to record to an onboard MicroSD card, if it loses connection with the NVR. Once the connection has been re-established, the footage is transferred to the NVR. This feature requires ANR support from the camera and NVR.



Fisheye Dewarping

Dewarping is a feature which allows an NVR to dewarp the 360° image from a fisheye camera. This makes the image much more usable as the image is flattened and not warped.



LPR (License Plate Recognition)

LPR is the ability to automatically analyse video to detect vehicles and number plates. This allows the NVR to record footage as normal, but also record and store license plates. This is done using the Uniview LPR camera (HC121@TS8CR-Z).



RAID (Redundant Array of Independent Disks)

RAID is a data storage technology that combines multiple hard drives into one or more logical units. The purposes of this are data redundancy, performance improvement, or both. This NVR can perform the following different configurations of RAID:

  • RAID 1 - Data is written to each hard drive, creating a "mirrored" set of drives. This configuration provides the least amount of usable space, but with redundancy. If one drive fails, no data is lost.



VCA (Video Content Analysis)

VCA is the ability to automatically analyse video to detect temporal and spatial events. The feature requires VCA support from the camera and NVR. This NVR has the capability to do the following:

  • Audio Detection - Detect a sudden increase or decrease in sound
  • Crowd Density Monitoring - Detect and monitor the number of people in a pre-defined virtual region, with different warning levels
  • Enter Area - Entering into a pre-defined virtual region
  • Face Recognition - Detect and recognise faces against a known database
  • Fire Detection - Detects fire (requires a thermal camera)
  • Intrusion Detection - Entering and loitering in a pre-defined virtual region
  • Leave Area - Leaving a pre-defined virtual region
  • Line Crossing - Detect when a pre-defined virtual line has been crossed
  • Motion Detection - Movement within a pre-defined virtual region
  • People Flow Counting - Counts the number of people crossing over a virtual line
  • Object Left Behind - Detect when an object has been left inside a region, which wasn't there before
  • Object Removed - Detect when an object has been removed from a region, which was there before
  • Scene Change - Detect when the scene changed
  • Smoking Detection - Detects smoking (requires a thermal camera)
  • Tamper Identification - Detect when the camera has been physically tampered with
  • Temperature Measurement - Measure temperatures (requires a thermal camera)
  • Ultra Motion Detection - Detects if movement was caused by a human, motor vehicle or non-motor vehicle
