5MP AI Fisheye Camera (360° View)
Save
100%
100%
Part of the UNV Omniview range, this fisheye IP camera boasting an impressive 5 megapixel HD recording resolution and a 1.4mm fixed-focal lens. Supporting up to Ultra265 compression and 10m of IR range.
- Resolution 5MP (2592 x 1944), POE
- Fixed 1.4mm Lens, Viewing Angle 360° (H)
- Smart IR, Up To 10m IR Range
- Anti-Reflection Design To Improve IR Effectiveness
- Built-in microphone
- Day/Night, IR Cut Filter, 3D DNR
- WDR, OSD, Triple Streams
- Privacy Mask, Motion Mask, ROI
- Supports H.264, H.265 or Ultra H.265
- ONVIF Compliance (Profile S, G, T)
- Temperature Range -40°C to 60°C
- Wide voltage range of ±25%
- Metal Housing, IP66 Rated
- 4kV Surge Protection
Camera
Image Sensor:
Aptina CMOS (1/2.8")
Resolution:
5MP
Effective Pixels (H x V):
2592 x 1944
TV System:
PAL / NTSC
Shutter Speed:
Auto/Manual, 1/6~1/100000s
Signal-to-noise Ratio:
>55dB
Iris:
Electronic
Back Light Compensation:
Via OSD Menu
Wide Dynamic Range:
120dB
Digital Noise Reduction:
2D/3D
Gain Control:
Auto
Sync Mode:
Internal
White Balance:
Auto/Manual
Lens:
Fixed 1.4mm Lens
Field of View:
360°
Scanning:
Progressive Scan
Onboard Recording:
Yes, to MicroSD card up to 256GB
DORI
Detect:
31.5m
Observe:
12.6m
Recognise:
6.3m
Identify:
3.2m
Day/Night
Day & Night:
IR Cut Filter (Smart IR)
Minimum Illumination:
Colour 0.01Lux, 0Lux with IR on
IR Range:
8-10m
IR Control:
CDS Auto
Network
Ethernet:
RJ45 10/100
Supported Protocols:
IPv4,IGMP,ICMP,ARP,TCP,UDP,DHCP, RTP,RTSP,RTCP,DNS,DDNS,NTP,FTP,UPnP,HTTP,HTTPS,SMTP,SSL
ONVIF:
Supports ONVIF (Profile S, Profile G, Profile T)
POE:
Yes
Main Stream:
2592x1944@30fps
Sub Stream:
720x576@30fps
General
Power:
DC12V±25% / PoE (IEEE 802.3af)
Housing:
Metal
Power Consumption:
Max 8.5W
Operating Temperature:
-30°C ~ +60°C
Operating Humidity:
≤95% RH
Ingress Protection:
IP66
Approvals:
CE / FCC
Weight:
360g
Interface
Built-in Microphone:
Yes
Audio I/O:
Audio in (x1), Audio out (x1)
Alarm I/O:
Alarm in (x1), Alarm out (x1)
All dimensions are in millimetres (mm)

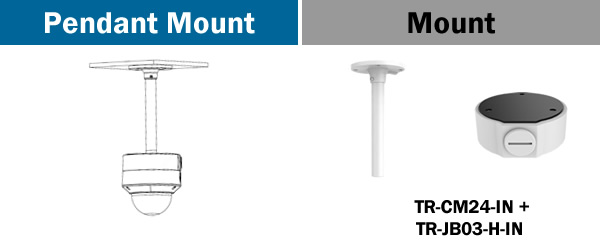

Different ways of mounting this camera:
This camera has the following special features:
AI (Artificial Intelligence)
AI allows the camera to work out if the movement detected was caused by a human, vehicle, or non-motor vehicle. The technology, known as SIP (Smart Intrusion Prevention), allows the camera to filter out 97% of false triggers from light, animals, and nature. This feature requires an AI-compatible NVR.
ANR (Automatic Network Replenishment)
ANR is a feature which allows a camera to record to an onboard MicroSD card, if it loses connection with the NVR. Once the connection has been re-established, the footage is transferred to the NVR. This feature requires ANR support from the camera and NVR.
IK10 Rating
An IK rating refers to how much mechanical impact a product can resist and is defined in IEC 62262. An IK10 rating means the product is protected against 20 joules impact; this is equivalent to an impact from a 5kg mass dropped from 400 mm above the impacted surface.
VCA (Video Content Analysis)
VCA is the ability to automatically analyse video to detect temporal and spatial events. This camera has the capability to do the following:
- Audio Detection - Detect a sudden increase or decrease in sound
- Heat Map - Show hot spots of movement
- Motion Detection - Movement within a pre-defined virtual region
- Tamper Identification - Detect when the camera has been physically tampered with
