UNV-Link Pro Connect Box

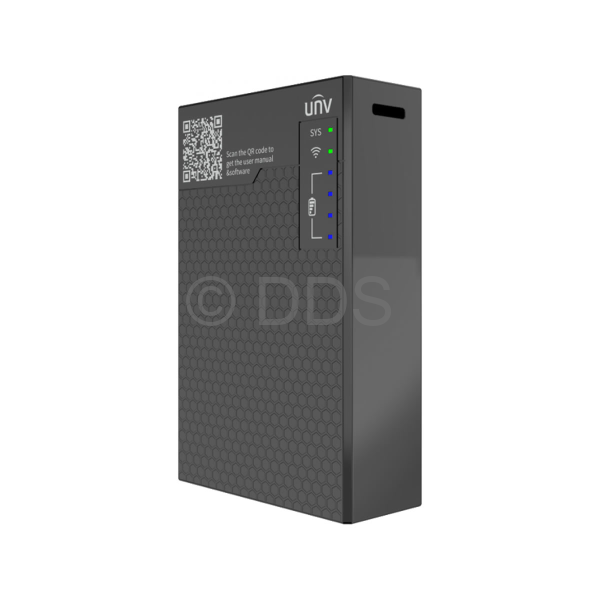

The Uniview Connect Box is designed to help with the installation and commissioning of UNV cameras; and provide solutions to common problems, such as IP address modification, temporary power and network supply, voltage detection etc. It connects to a smartphone using the UNV-Link Pro app and allows you to connect to a camera using the Connect Box's built-in Wi-Fi hotspot, and access the camera's live view and settings easily from your phone. The Connect Box is a portable device, measuring 130mm x 85mm x 33mm and comes with a range of I/O for different uses:

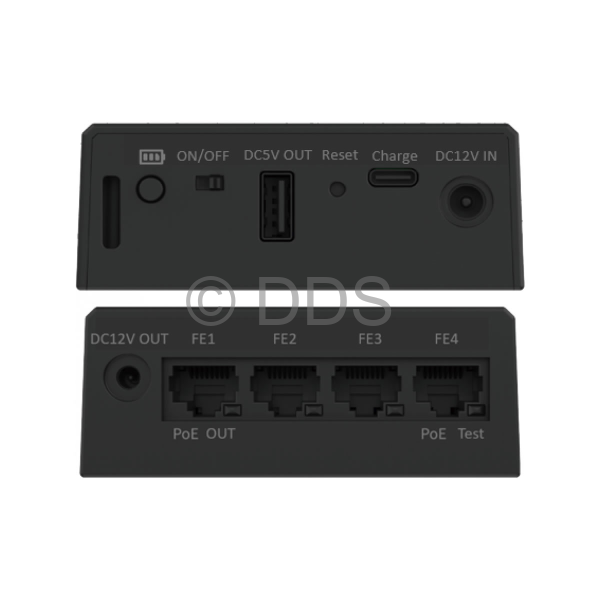

- On/Off switch
- Reset Button
- USB-A DC5V Output (to charge a smartphone, up to 1A/5W)
- USB-C Input (to charge the Connect Box, up to 2A/10W)
- DC12V Input (to test DC voltage, between 1V and 56V)
- DC12V Output (to supply DC power to an IP camera, up to 1A/12W)
- 4x Ethernet Port (Port 1 can supply POE up to 0.5A/12W, Port 4 can test the output voltage of an external POE device)
