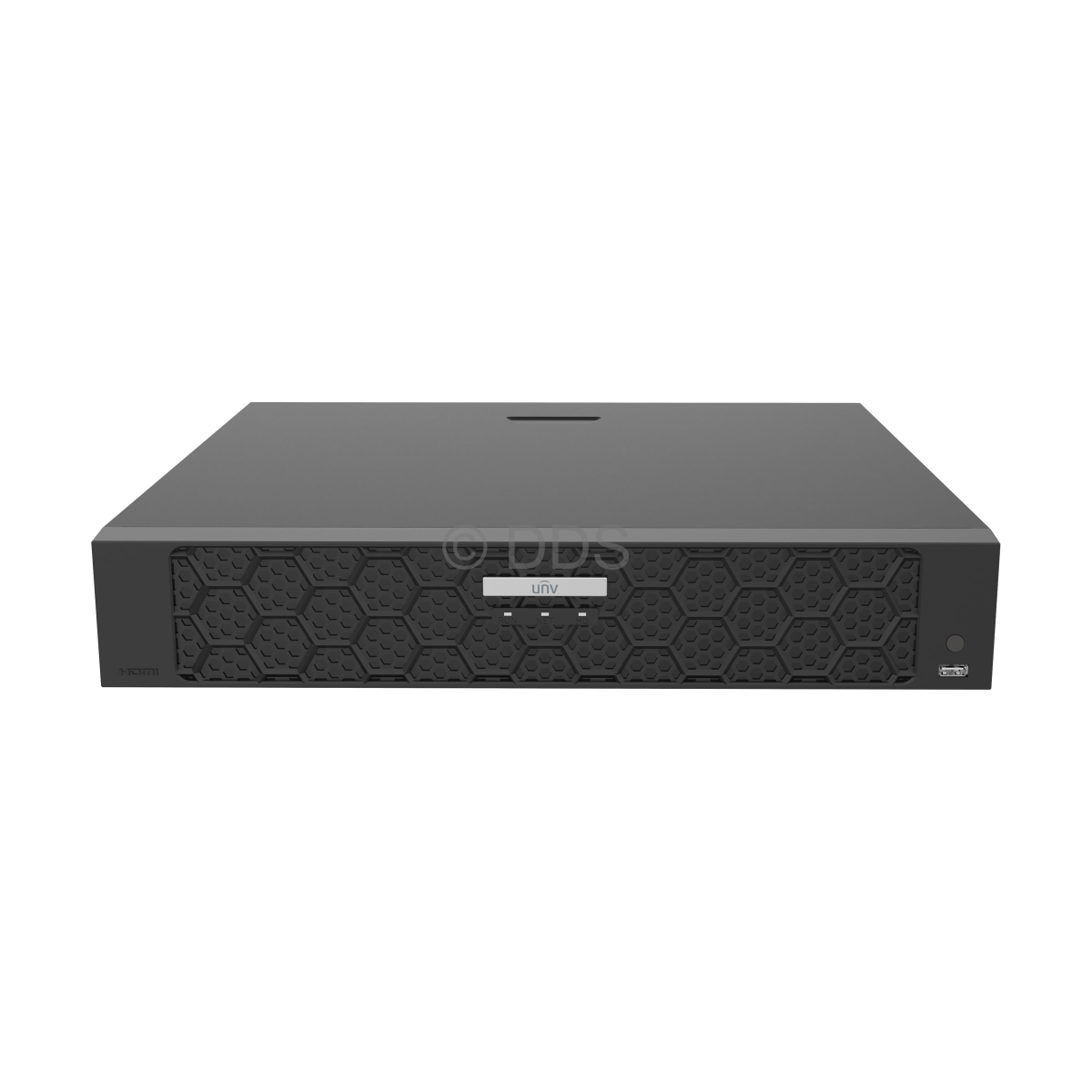

UNV Professional NVR (32 Channel, 16 POE)

Call us for a price

NVR504-32B-P16

Part of the UNV professional range, this IP NVR (Network Video Recorder) has HD recording and playback of all channels. It includes a user friendly mouse driven interface with full remote network and mobile phone access. The NVR can auto detect ONVIF compatible IP cameras; it can support up to 16MP IP cameras.

- 32 Channel Video & Audio
- Plug & Play for UNV Cameras
- Supports up to 16MP IP Cameras
- Bandwidth IN: 320Mbps, OUT: 160Mbps
- HDMI & VGA Output
- VCA with Compatible Cameras (see Special Features)
- ONVIF Compliance (Profiles S, G, T)
- Supports H.264, H.265 or Ultra265
- ANR Technology to Enhance Storage (see Special Features)
- Alarm 16 In, 4 Out, Two-way Audio
- Mac Compatible
- Supplied with Rack Mounts
- Compatible with Sentinel and Immix Remote Monitoring

*NVR purchased without HDD comes with a Limited Warranty. Also, Uniview compatible HDD must be used


Click here to select Hard Drive options

Video/Audio Input

Video Input:
32ch H.264/H.265/Ultra265
Incoming Bandwidth:
320Mbps
Outgoing Bandwidth:
160Mbps
Supported Technologies:
IP

Video/Audio Output

Live View/ Playback/ Recording Resolution:
16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080P/720P/D1/VGA/CIF/QCIF
Frame Rate:
16MP, 12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080P@30fps
Playback Capacity:
32ch 960P/16ch 1080P/10ch 3MP/8ch 4MP/4ch 8MP/2ch 12MP/2ch 16MP
HDMI Output:
3840x2160, 1920x1080, 1280x720, 1024x768
VGA Output:
1920x1080, 1280x720, 1024x768
Audio Output:
1ch, Line out

Hard Disk

Drive quantity:
Up to 4 SATA drives
Drive capacity:
Up to 10TB each

Network

Network Interface:
1 RJ45 10M/100M/1000M
Protocol:
RTP/RTCP, TCP/UDP ,HTTP, DHCP, DNS, NTP, P2P, UPnP, PPPoE
POE Interface:
16Ch 100Mbps, IEEE802.3af/at
POE Max Power:
Max 30W for single port/150W for all ports (15W each)

Storage and Backup

Recording Mode:
Manual, Continuous, Schedule, Motion, Sensor, Pre/Post
Playback:
Search by Time, Calendar, Events
Backup Devices:
Via USB Memory Stick, HDD or over the network
Live View:
1, 4, 9, 16 or 32 screens, Digital Zoom

General

Power Supply:
AC220V
Power Consumption:
Max 20W (without HDD, USB)
Operating Temperature:
-10°C ~ +55°C
Operating Humidity:
0% - 90% RH
Product Dimensions:
400mm(W) x 368mm(D) x 74mm(H)

Application

Supported OS:
Windows 7+, MacOS X 10.11+
Remote Software:
Internet Explorer 10+, EZStation VMS
Supported Devices:
iOS, Android
Mobile App:
EZView
Notifications:
Email or Push

Interface

Video Outputs:
HDMI (x1), VGA (x1)
USB:
USB 2.0 (x1), USB 3.0 (x1)
Audio I/O:
Microphone in (x1), Audio line out (x1)
Alarm I/O:
Alarm input (x16), Alarm output (x4)
PTZ Control:
Onvif / RS-485
Control:
Mouse control

This recorder has the following special features:

AI (Artificial Intelligence)

AI allows the NVR to work out if the movement detected was caused by a human, vehicle, or nature. This requires an AI compatible camera (order code ending in -I0).



ANR (Automatic Network Replenishment)

ANR is a feature which allows a camera to record to an onboard MicroSD card, if it loses connection with the NVR. Once the connection has been re-established, the footage is transferred to the NVR. This feature requires ANR support from the camera and NVR.



Fisheye Dewarping

Dewarping is a feature which allows an NVR to dewarp the 360° image from a fisheye camera. This makes the image much more usable as the image is flattened and not warped.



LPR (License Plate Recognition)

LPR is the ability to automatically analyse video to detect vehicles and number plates. This allows the NVR to record footage as normal, but also record and store license plates. This is done using the Uniview LPR camera (HC121@TCR-08S-Z).



RAID (Redundant Array of Independent Disks)

RAID is a data storage technology that combines multiple hard drives into one or more logical units. The purposes of this are data redundancy, performance improvement, or both. This NVR can perform the following different configurations of RAID:

  • RAID 1 - Data is written to each hard drive, creating a "mirrored" set of drives. This configuration provides the least amount of usable space, but with redundancy. If one drive fails, no data is lost.
  • RAID 5 - This requires at least 3 hard drives to work. This configuration provides a medium amount of usable space, with redundancy. If one drive fails, the unit will assess the missing data and rebuild it. Any more than one failed drive (at any one time) will result in total loss of data.



VCA (Video Content Analysis)

VCA is the ability to automatically analyse video to detect temporal and spatial events. The feature requires VCA support from the camera and NVR. This NVR has the capability to do the following:

  • Audio Detection - Detect a sudden increase or decrease in sound
  • Enter Area - Entering into a pre-defined virtual region
  • Fire Detection - Detects fire (requires a thermal camera)
  • Intrusion Detection - Entering and loitering in a pre-defined virtual region
  • Leave Area - Leaving a pre-defined virtual region
  • Line Crossing - Detect when a pre-defined virtual line has been crossed
  • Motion Detection - Movement within a pre-defined virtual region
  • Object Left Behind - Detect when an object has been left inside a region, which wasn't there before
  • Object Removed - Detect when an object has been removed from a region, which was there before
  • Scene Change - Detect when the scene changed
  • Smoking Detection - Detects smoking (requires a thermal camera)
