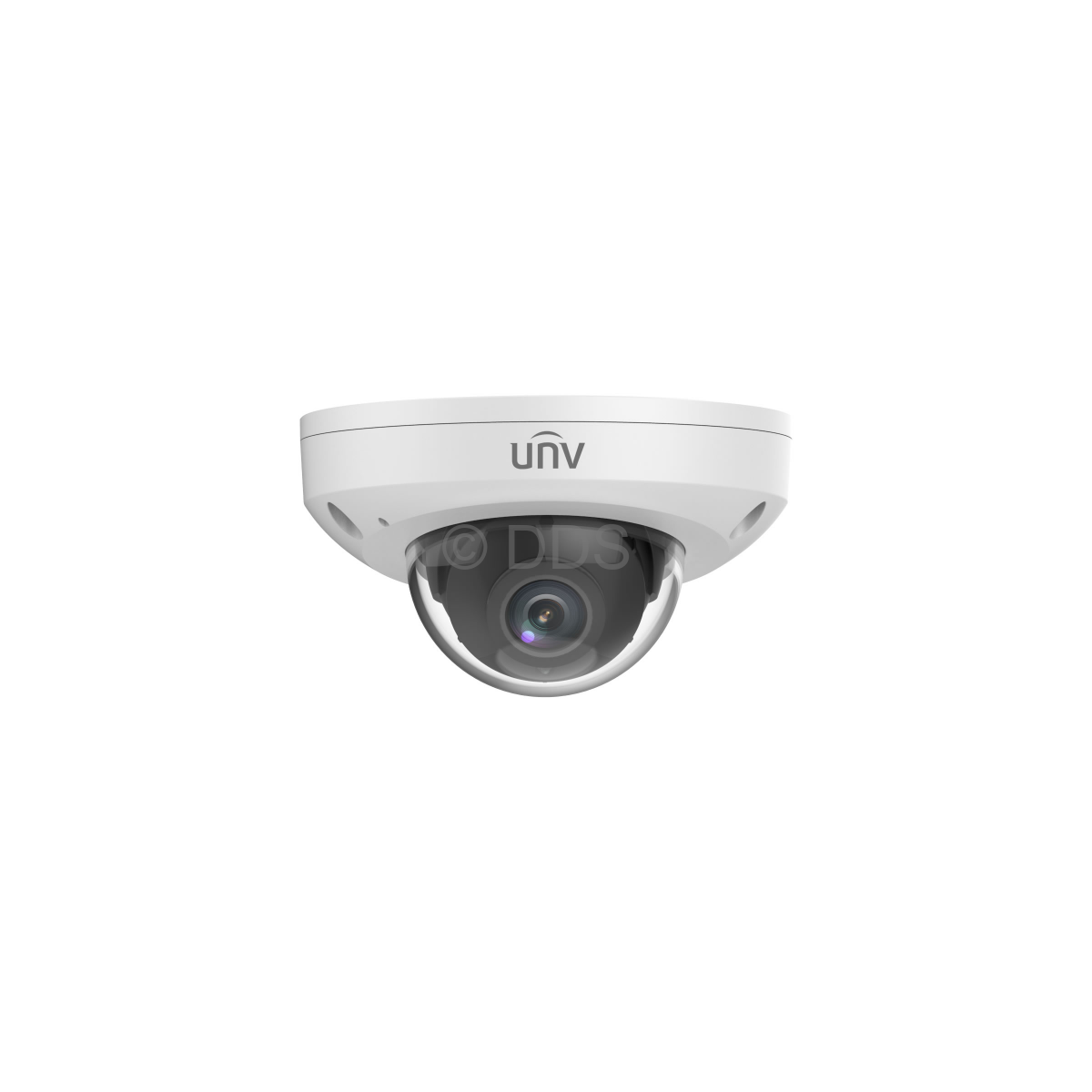

LightHunter Mini Dome Camera (4MP, AI, Mic, WDR)
Save
100%
100%
Part of the UNV LightHunter range, this vandal-resistant mini dome IP camera boasts an impressive 4 megapixel HD recording resolution and a 2.8mm fixed-focal lens. This camera has the LightHunter chipset, allowing for full colour at night with sufficient ambient lighting. Supporting Ultra265 compression and 30m of IR range; this camera also features a built-in microphone and MicroSD card slot. Alongside this, it also uses deep-learning AI (Artificial Intelligence), allowing it to analyse the picture for movement and only alert/record when a human or vehicle is detected, ignoring animals and nature.
- Vandal Resistant (IK10 Rating)
- Resolution 4MP (2688 x 1520), POE
- Fixed 2.8mm Lens, Viewing Angle 101.1°(H)
- Built-in Microphone
- Smart IR, Up To 30m IR Range
- Day/Night, IR Cut Filter, 3D DNR
- WDR, OSD, Triple Streams, Micro SD Card slot
- Privacy Mask, Motion Mask, ROI, 9:16 Corridor Format Support
- VCA - Line Crossing, Intrusion Detection (see Features)
- Supports H.264, H.265 or Ultra H.265
- ONVIF Compliance (Profile G, S, T)
- Temperature Range -30°C to 60°C
- Wide Voltage Range (±25%)
- Built-in surge protection, up to 4kV
- Metal Housing, IK10 and IP67 Rated
Camera
Image Sensor:
LightHunter CMOS (1/3")
Resolution:
4MP
Effective Pixels (H x V):
2688 x 1520
TV System:
PAL / NTSC
Shutter Speed:
Auto/Manual, 1~1/100000s
Signal-to-noise Ratio:
>56dB
Iris:
Electronic
Back Light Compensation:
Via OSD Menu
Wide Dynamic Range:
120dB
Digital Noise Reduction:
2D/3D
Gain Control:
Auto
Sync Mode:
Internal
White Balance:
Auto/Manual
Lens:
Fixed 2.8mm Lens
Field of View:
101.1°
Scanning:
Progressive Scan
Onboard Recording:
Yes, to MicroSD card up to 512GB
DORI
Detect:
63.0m
Observe:
25.2m
Recognise:
12.6m
Identify:
6.3m
Day/Night
Day & Night:
IR Cut Filter (Smart IR)
Minimum Illumination:
Colour 0.002Lux, 0Lux with IR on
IR Range:
25-30m
IR Control:
CDS Auto
Network
Ethernet:
RJ45 10/100
Supported Protocols:
IPv4,IGMP,ICMP,ARP,TCP,UDP,DHCP, RTP,RTSP,RTCP,DNS,DDNS,NTP,FTP,UPnP,HTTP,HTTPS,SMTP,SSL
ONVIF:
Supports ONVIF (Profile G, Profile S, Profile T)
POE:
Yes
Main Stream:
2688x1520@30fps
Sub Stream:
720x576@30fps
General
Power:
DC 12V±25% / PoE (IEEE 802.3af)
Housing:
Metal
Power Consumption:
Max 6W
Operating Temperature:
-30°C ~ +60°C
Operating Humidity:
0% - 95% RH
Ingress Protection:
IP67
Approvals:
CE / FCC
Weight:
370g
Interface
Built-in Microphone:
Yes
Audio I/O:
Audio in (x1), Audio out (x1)

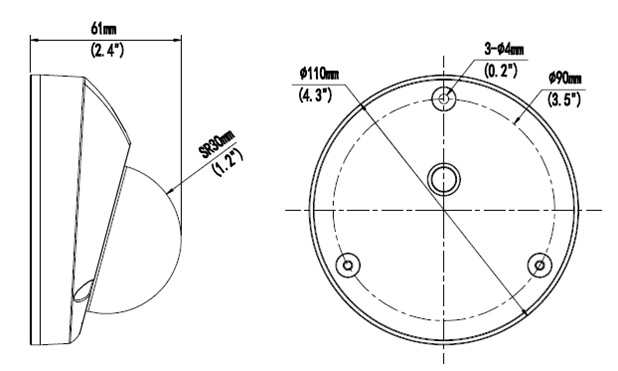

All dimensions are in millimetres (mm)
Different ways of mounting this camera:
This camera has the following special features:
AI (Artificial Intelligence)
AI allows the camera to work out if the movement detected was caused by a human, vehicle, or non-motor vehicle. The technology, known as SIP (Smart Intrusion Prevention), allows the camera to filter out 97% of false triggers from light, animals, and nature. This feature requires an AI-compatible NVR.
ANR (Automatic Network Replenishment)
ANR is a feature which allows a camera to record to an onboard MicroSD card, if it loses connection with the NVR. Once the connection has been re-established, the footage is transferred to the NVR. This feature requires ANR support from the camera and NVR.
LightHunter
LightHunter is the technology which allows for outstanding image at super low illumination during the night for both static and moving scenes. UNV LightHunter IPCs enhances the brightness of the images in a low-illumination environment by increasing the sensor target surface, sensor photosensitivity, lens aperture and transmittance as well as optimizing the hardware structure. UNV new-generation algorithm (U-ISP) has many advantages, such as reducing blur and noise and increasing sharpness. All of these advantages improve the definition and brightness of images. This also means that the camera can display full colour at night.
IK10 Rating
An IK rating refers to how much mechanical impact a product can resist and is defined in IEC 62262. An IK10 rating means the product is protected against 20 joules impact; this is equivalent to an impact from a 5kg mass dropped from 400 mm above the impacted surface.
VCA (Video Content Analysis)
VCA is the ability to automatically analyse video to detect temporal and spatial events. This camera has the capability to do the following:
- Audio Detection - Detect a sudden increase or decrease in sound
- Enter Area - Entering into a pre-defined virtual region
- Intrusion Detection - Entering and loitering in a pre-defined virtual region
- Leave Area - Leaving a pre-defined virtual region
- Line Crossing - Detect when a pre-defined virtual line has been crossed
- Motion Detection - Movement within a pre-defined virtual region
- Tamper Identification - Detect when the camera has been physically tampered with
