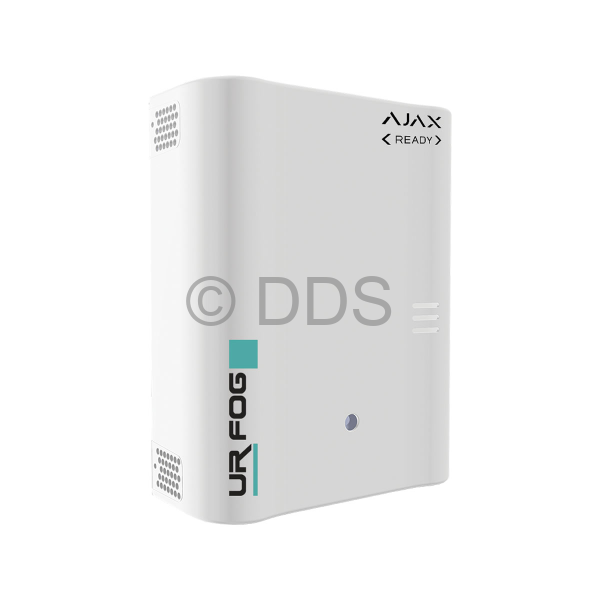

UR Fog Fogging System (Modular 200)
Save
100%
100%
The Modular 200 from UR Fog has a total discharge capability (with full bag) of 850m³ and can provide up to 600m³ coverage in a single shot. It is a mains-powered unit but can work for 1 hour if a 2Ah 12V backup battery is installed (not included). Compared with a smoke generator, this fogging system leaves no residuals or bad smells, and can be used with food-grade fluid for use in restaurants, cafes and kitchens.
- Multiple shots per cartridge (configurable in seconds)
- Up to 28 seconds of shooting time
- Up to 850m³ of coverage
- 1x fluid bag included
- 2x Ajax relays pre-installed
| Technical Specifications | |
| Inputs | 2 wired inputs: Arming, Shooting |
| Outputs | 3 wired outputs: Arming/shooting status, low fluid, system error |
| Serial port | 1 serial interface RS232 with URFOG Standard protocol |
| USB port | Computer monitoring (Windows and Linux) |
| Registration on Active Cloud | Optional |
| Operating time without mains power | ~1 hour with 2Ah 12V backup battery (not included) |
| Heating time | ~1 hour |
| Total discharge capability with full bag | 850m3 |
| Single shot coverage (visibility less than 1m) | Up to 200m3 |
| Single shot coverage (visibility more than 1.5m) | up to 600m3 |
| Shot times (seconds) | Programmable in seconds |
| Maximum emission time in a single shot | 28 seconds |
| Fluid cartridge capacity | 500ml |
| Operating temperature range | -10°С to +50°С |
| Colour | RAL 9010 |
| Dimensions | 300mm х 130mm x 390mm |
| Weight | 7.5kg |
