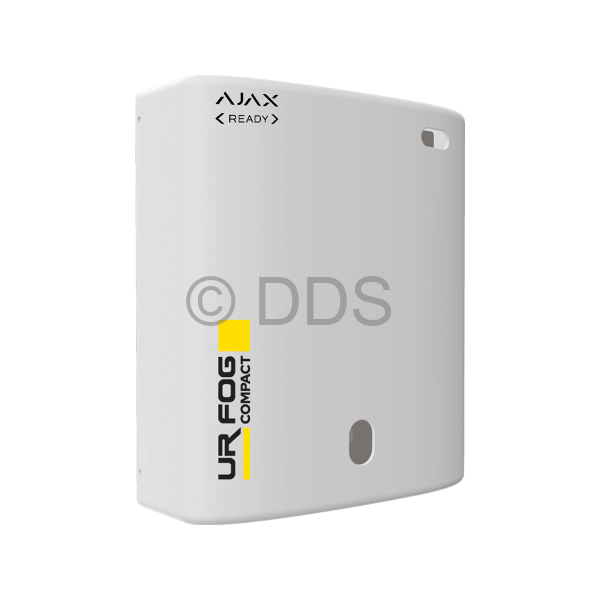

UR Fog Fogging System (Compact 390)
Save
100%
100%
The Compact 390 from UR Fog has a total discharge capability (with full bag) of 2340m³ and can provide up to 390m³ coverage in a single shot. It is a mains-powered unit but can work for 1 hour if a 1.2Ah 12V backup battery is installed (not included). Compared with a smoke generator, this fogging system leaves no residuals or bad smells, and can be used with food-grade fluid for use in restaurants, cafes and kitchens.
- Multiple shots per cartridge (configurable in seconds)
- Up to 50 seconds of shooting time
- Up to 2340m³ of coverage
- Fluid not included
- 2x Ajax relays pre-installed
| Technical Specifications | |
| Inputs | 2 wired inputs: Arming, Shooting |
| Outputs | 3 wired outputs: Arming/shooting status, low fluid, system error |
| Serial port | 2 serial interfaces RS232 with URFOG Standard protocol |
| Operating time without mains power | ~1 hour with 1.2Ah 12V backup battery (not included) |
| Heating time | ~20 minutes |
| Total discharge capability with full bag | 2340m3 |
| Single shot coverage (visibility less than 1m) | Up to 130m3 |
| Single shot coverage (visibility more than 1.5m) | up to 390m3 |
| Shot times (seconds) | Programmable in seconds |
| Maximum emission time in a single shot | 50 seconds |
| Fluid cartridge capacity | 500ml |
| Operating temperature range | -10°С to +50°С |
| Colour | RAL 9010 |
| Dimensions | 265mm х 115mm x 325mm |
| Weight | 3.8kg |
