Vortec IP NVR
Save
60%
60%

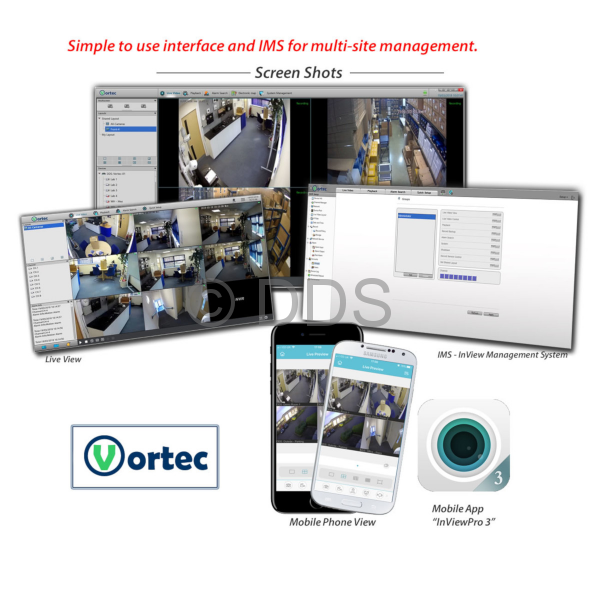

Vortec NVR (Network Video Recorder) with HD recording and playback of all channels. Vortec NVR includes a user friendly mouse driven interface with full remote network and mobile phone access. The NVR can auto detect ONVIF compatible IP cameras and it can support up to 8MP IP cameras
- NVR with H.264/H.265 Compression
- Up to 16 Channel
- Full HD in Live, Recording & Playback
- HD Recording: 8MP (4K), 6MP, 5MP, 4MP, 3MP, 2MP (1080P), 1.3MP(960P), 1.0MP(720P)
- HDMI output in 4K (3840 x 2160)
- Dual Streaming
- Real Pentaplex Operation (Live, Recording, Playback, Backup, Network)
- Smart Apps (iPhone, iPad, Android)
- Supports up to 8 HDD (max 32TB)
Model:
SN-NVR-16EX
Video/Audio Input
Video Input:
16ch H.264/H.265
Incoming Bandwidth:
256Mbps (main stream 192Mbps, sub stream 64Mbps)
Outgoing Bandwidth:
256Mbps
Audio Input:
G711_A/G711_U
Supported Technologies:
IP
Video/Audio Output
Live View/ Playback/ Recording Resolution:
8MP/6MP/5MP/4MP/3MP/1080P/720P/D1/VGA/CIF/QCIF
Frame Rate:
8MP, 6MP, 5MP, 4MP, 3MP, 1080P@30fps
Live View:
16ch 1080P/8ch 4MP/4ch 8MP @30fps
Playback Capacity:
16ch 1080P/8ch 4MP/4ch 8MP/1ch 12MP
HDMI Output:
HDMI1: up to 1920x1080 HDMI2: 3840x2160
VGA Output:
1920x1080, 1280x720, 1024x768
Audio Output:
1ch, Line out
Hard Disk
Drive quantity:
Up to 8 SATA drives
Drive capacity:
Up to 6TB each
Network
Network Interface:
1 RJ45 10M/100M/1000M
Protocol:
RTP/RTCP, TCP/UDP ,HTTP, DHCP, DNS, NTP
POE Interface:
N/A
POE Max Power:
N/A
General
Power Supply:
AC110/220V
Power Consumption:
Max 16W (without HDD, USB)
Operating Temperature:
-10°C ~ 45°C
Operating Humidity:
0% - 90% RH
Chassis:
2U
Product Dimensions:
440mm(W) x 433.5mm(D) x 93mm(H)
Application
Supported OS:
Windows 7+
Remote Software:
Internet Explorer 9+, IMS
Supported Devices:
iOS, Android

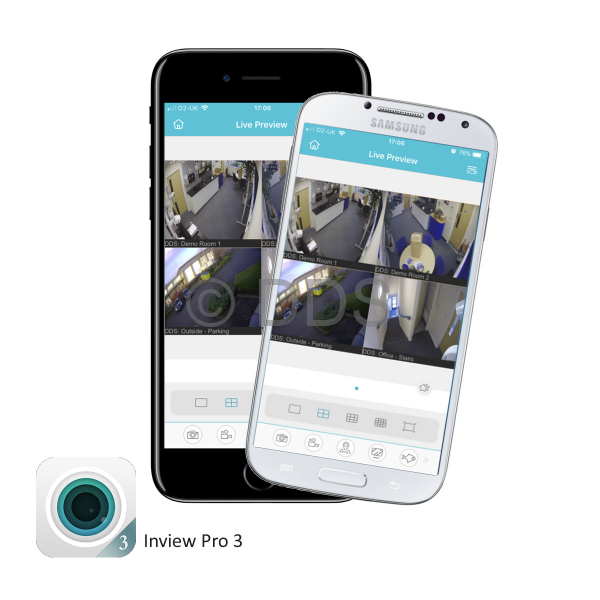

Mobile App:
InView Pro 3
Notifications:
Email
Interface
Video Outputs:
HDMI (x2), VGA (x1)
USB:
USB 2.0 (x2), USB 3.0 (x1)
Audio I/O:
Microphone in (x1), Audio line out (x1)
Alarm I/O:
Alarm input (x16), Alarm output (x4)
Reset Button:
Yes
PTZ Control:
Onvif
Control:
Mouse control

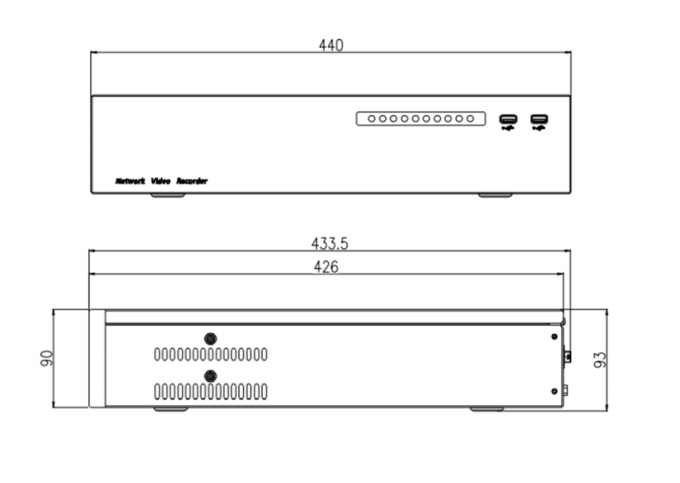

All dimensions are in millimetres (mm)
Click the link below to view and download our guides and manuals, including how to set up the mobile apps, using the CMS software and how to back up footage.
