Ajax Fibra

The wired revolution

Up to 2,000 meters of connectivity, compatibility with all types of devices, 60 hours of operation of a system consisting of 30 devices on a backup battery, advanced anti-sabotage, photo verifications, instant notifications, hassle-free installation and remote configuration through an app — everything that was possible in wireless Ajax is now available with wires and Fibra.

Ajax wired alarm system uses secure Fibra communication technology to work, which allows you to create independent lines up to 2 km long. 8 lines in one system under the control of the Hub Hybrid control panel minimise the potential damage from accidents. Even a complete break in one of the lines will leave the Ajax security system working at 87%.

With Fibra wired communication technology, connection options are available, such as star topology or 8 lines as zones in conventional signalling. In any configuration, you get a smart security system.

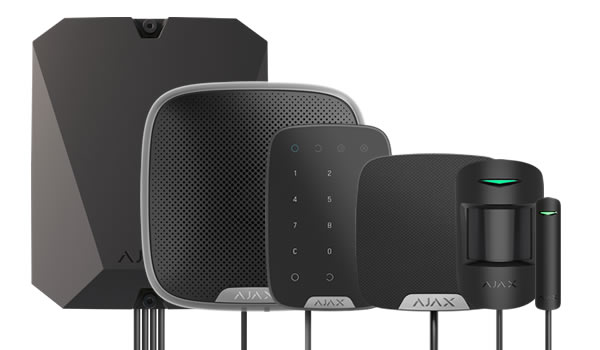

Ajax Fibra Range

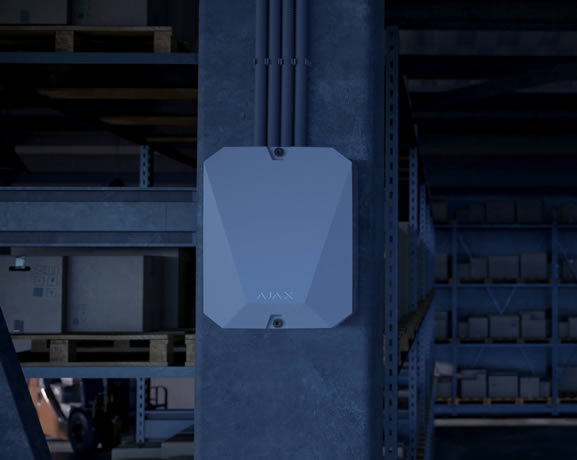

Ajax Hub Hybrid (2G)

Hub Hybrid (2G)

Hybrid security system control panel supporting photo verification of alarms

 Compatible with wireless (Jeweller) and wired (Fibre) devices

 Ethernet, Dual SIM (2G)

  Up to 100 devices

 Up to 25 cameras or DVRs

 Up to 5 ReX range extenders

 Up to 50 users

 Up to 9 security groups

 Up to 32 automation scenarios

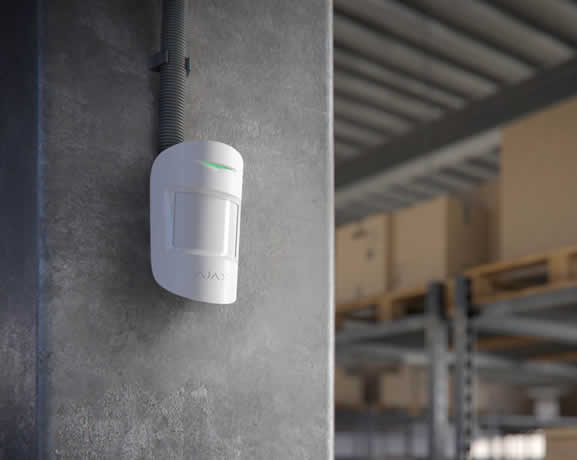

MotionProtect

Wired motion detector

 Smart motion detection

 Accurately detects motion in heat conditions, even at temperatures of 40°C+

 Ignores cats and dogs with weights of up to 20kg and heights up to 50cm

 Power consumption up to 50 µA from the Fibra line

 Up to 2,000 m of two-way radio communication



Ajax MotionProtect Fibra



Ajax MotionProtect Plus Fibra

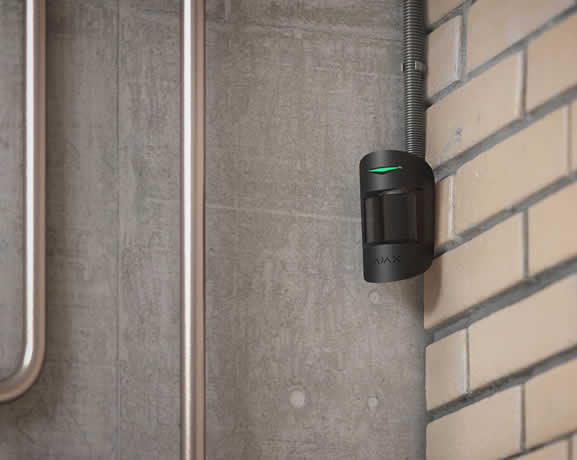

MotionProtect Plus Fibra

Wired motion detector with additional microwave sensor

 Smart motion detection

 Does not react to airflow from air conditioner and fireplace

 Accurately detects motion in heat conditions, even at temperatures 40°C+

 Ignores cats and dogs with weights of up to 20kg and heights up to 50cm

 Power consumption up to 50 µA from the Fibra line

 Up to 2,000 m of two-way radio communication

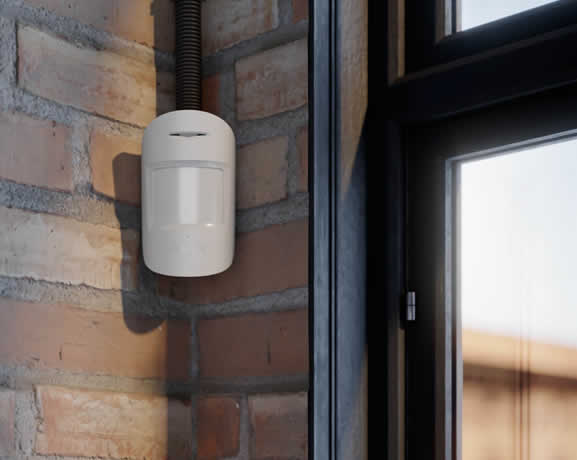

CombiProtect Fibra

Wired motion detector with a glass break detector

 Smart motion detection

 Detects broken glass up to 9m from the window

 Accurately detects motion in heat conditions, even at temperatures +40°C

 Ignores cats and dogs with weights of up to 20kg and heights up to 50cm

 Power consumption up to 60 µA from the Fibra line

 Up to 2,000 m of two-way radio communication



Ajax CombiProtect Fibra



Ajax DoorProtect Fibra

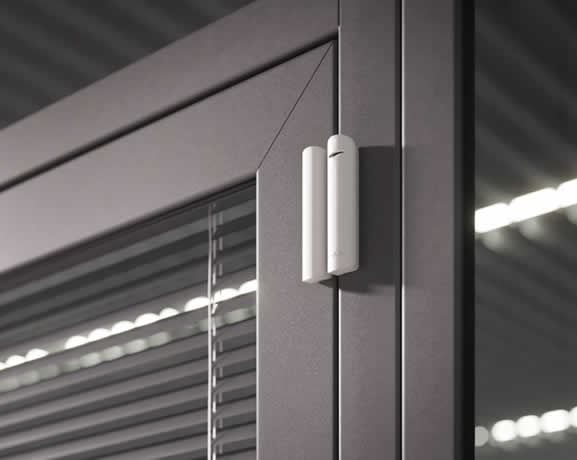

DoorProtect Fibra

Wired opening detector

 Opening detector

 Two reed switches

 External contact is available for connecting third-party detectors

 Power consumption from Fibra line is up to 36 mW

 Communication with the hub at a distance of up to 2,000 m

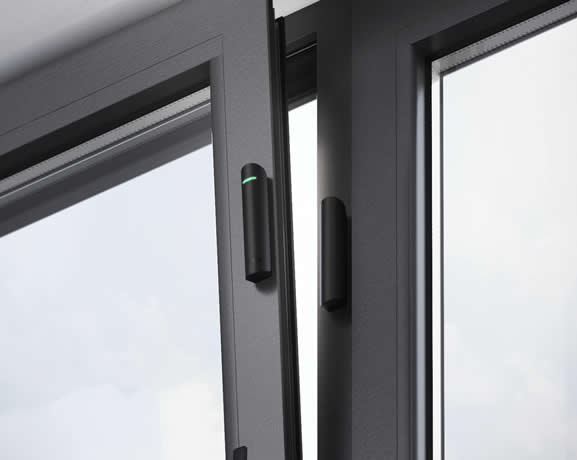

DoorProtect Plus Fibra

Wired opening detector with additional shock and tilt sensors

 Opening detector

 Two reed switches

 Registers change in vertical slope angle, bangs and vibration

 Tilt detection from 5°

 External contact is available for connecting third-party detectors

 Power consumption from Fibra line is up to 36 mW

 Communication with the hub at a distance of up to 2,000 m



Ajax DoorProtect Plus Fibra



Ajax GlassProtect Fibra

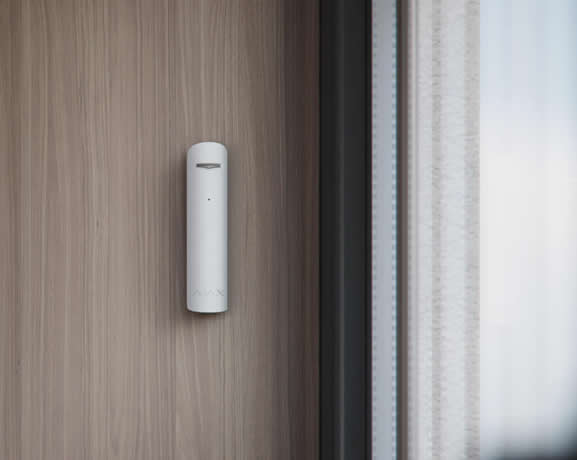

GlassProtect Fibra

Wired glass break detector

 Glass break detector up to 9 m

 Ignores thunder, dogs barking and noise outside the window

 External contact is available for connecting third-party detectors

 Power consumption from Fibra line is up to 36 mW

 Communication with the hub at a distance of up to 2,000 m

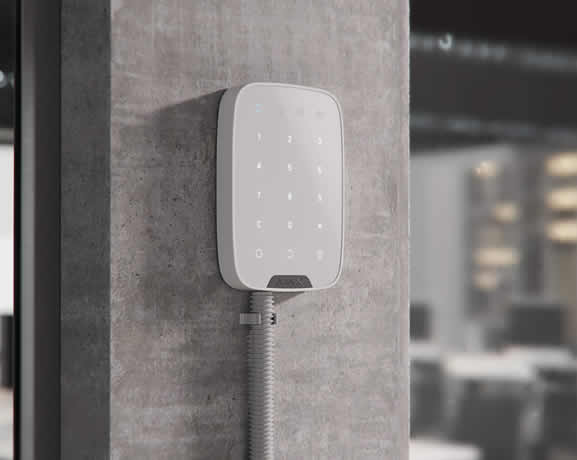

KeyPad Fibra

Wired touch keyboard to manage security system

 Blocks attempts to guess the passcode

 Duress code

 Security mode indication

 Power consumption from Fibra line is up to 354 mW

 Communication with the hub at a distance of up to 2,000 m



Ajax KeyPad Fibra



Ajax HomeSiren Fibra

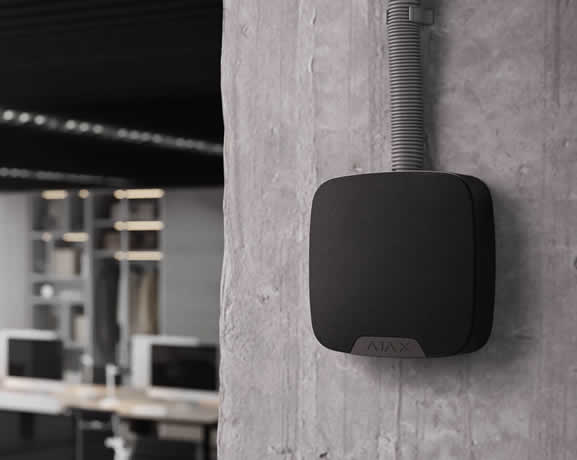

HomeSiren Fibra

Compact wired indoor siren

 Adjustable volume from 81 to 105 dB

 Alarm duration from 3 to 180 seconds

 Terminal for a third-party LED

 Security mode indication

 Power consumption from Fibra line is up to 1.8 W

 Communication with the hub at a distance of up to 2,000 m

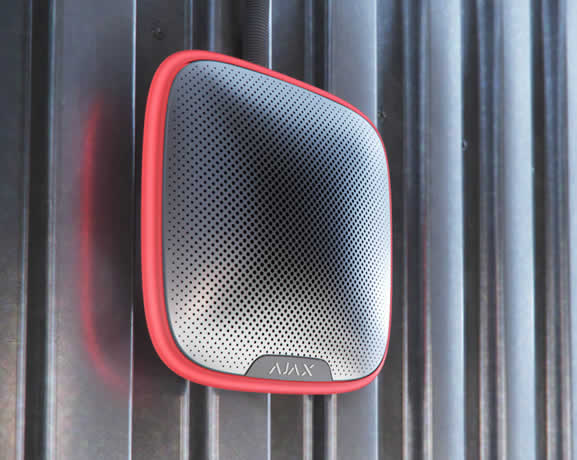

StreetSiren Fibra

Wired outdoor siren

 Adjustable volume from 81 to 105 dB

 Alarm duration from 3 to 180 seconds

 LED frame to indicate alarms and security modes

 IP54 protection class

 Built-in backup battery

 Power consumption from Fibra line is up to 0.37 W

 Communication with the hub at a distance of up to 2,000 m



Ajax StreetSiren Fibra



Wire Type Security System



Wired burglar alarm sensors

Before installing wired security devices, a plan is drawn up, taking into account the location and their type. It is essential to prepare cables of the appropriate length and distance between the sensors and the control panel. After calculations, connections are made, and system sensors are connected. When the installation of the system is completed, the devices are configured and a general check of the operation of the wired security alarm is carried out.



Types of wired security system sensors

The Ajax wired security system uses the following security sensors:

  • Wired motion sensors — detect a person in a controlled area by movement.
  • Sensors for opening windows and doors of the wired type are installed on doors or windows in the entrance area of ​​the room. Inform users of the system if someone tries to enter the guarded premises.
  • Wired Glass Break Detectors — respond to the sound of broken glass if an intruder tries to break into a building by breaking a window.

Features of wired security alarm from Ajax

The Ajax wired indoor security system has a number of advantages:

  • One of the most important advantages of the wired Ajax security system is the speed of response to events. The user and the security company will know about the incident in 0.15 seconds.
  • The free Ajax app for smartphones and PCs allows you to manage security, relays and smart sockets. On site and remotely. System sensors are also configured in the application.
  • The body of the wired devices of the system is protected by a tamper button. This is a device that helps to detect the opening of the case, its dismantling and damage to the device. If such a situation occurs, the user of the system will be instantly notified.
  • The Ajax wired security system allows you to create 32 scenarios and minimize the impact of the human factor on security. The control panel of the system can control the security of an object or group according to a pre-configured schedule. The system can turn on the light when a motion sensor is triggered, de-energize the room in case of fire, control garage doors, etc.
  • If the control panel loses communication, the user and the security company will know about it in 1 minute.
  • Information in Ajax applications makes permanent automatic backups and is protected by encryption. With cloud sync, getting started on a new mobile phone or PC takes a few minutes — you need to install the program and sign in to your account.
  • The Ajax wired security control panel is equipped with a unique mechanism for testing the power supply of alarm devices. The test is launched through the application and simulates the maximum possible power consumption: keyboards are activated, sensors inform about an alarm, sirens turn on. If the security system passes this test, it means that — all devices will have enough power in situations of any complexity
